GImage and Pixels

Announcements

• Project 2: Breakout is due today at 10pm!
• Problem set #4 grading posted
  • any concern? Reach out to me.
• Problem set #5 is posted and due next week Monday 17 at 10 pm
• Polling continues on this link here

Review!

What is the third element (index 2) in the below list?

[i * 4 for i in "Oct 21, 2022" if not i.isalpha() and not i.isspace()]

Picturing Multidimensional Arrays

• Multidimensional arrays are commonly pictured as each inner list being stacked beneath the previous
• In such a representation, the outermost/first elements/indices represent the row, and the inner/second elements/indices represent the column

[ [2, 9, 4], [7, 5, 3], [6, 1, 8] ]

Initialize a Chessboard

Initialize a Chessboard

Initialize a Chessboard

The GImage Class

• You can display an image from a file in PGL using the GImage class. GImage(filename, x, y)
  • filename is the string containing the name of the file which contains the image
  • x and y are the coordinates of the upper left corner of the image
• Best to use one of the common image formats
  • Graphical Interchange Format (GIF): fish.gif
  • Joint Photographic Experts Group (JPEG): fish.jpg
  • Portable Network Graphics (PNG): fish.png

Images and Copyrights

• Most images that you might find on the web are protected by copyright under international law.
• Ensure you have the necessary permissions before using an image
  • On the web, the image hosting site will often specify what rules apply to that image
    • Example: Images from www.nasa.gov can be freely used as long as you add an attribution line
  • Non-commercial use of an image can sometimes fall under “fair use” doctrine, but academic integrity and common courtesy both demand you cite or acknowledge any material you have obtained from others.

Example: VLA Moonset

from pgl import GImage, GWindow, GLabel

def image_example():
    gw = GWindow(800, 550)
    image = GImage("VLA_Moonset.jpg")
    image.scale(gw.get_width() / image.get_width())
    gw.add(image)

    citation = GLabel("Image Credit: Jeff Hellermann, NRAO / AUI / NSF")
    citation.set_font("15px 'Sans-Serif'")
    x = gw.get_width() - citation.get_width() - 10
    y = image.get_height() + citation.get_ascent()
    gw.add(citation, x, y)

2D Arrays → Images

• Image data is commonly stored in two-dimensional arrays

• Each element stores information about the pixel that exists at that location

• The GImage class lets you convert between the image itself and the array representing the image contents by using the get_pixel_array method, which returns a two-dimensional array of integers.

• We could get the pixels from our example image using:

  image = GImage("VLA_Moonset.jpg")
  pixels = image.get_pixel_array()

• The first index of the pixel array gets you the row, the second index gets you the column

Pixel Contents

• Each element in a pixel array is an integer in which the 32 bits are interpreted as:

• The first byte (8 bits) is the transparency or alpha
• The next three bytes indicate the amount of red, green, and blue in the pixel, where each value varies from 0 to 255
  • Form the RGB of a color, generally expressed in hexadecimal form
    • 10010101 → 0x95
    • 00111001 → 0x39
    • 01100011 → 0x63
  • Overall color: #953963 or

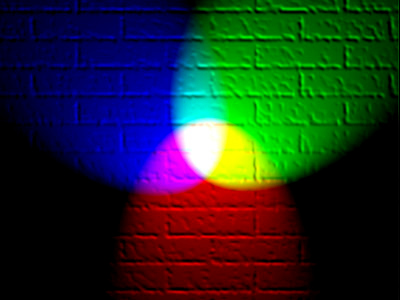

Combining Light Colors

Transparency

• The first byte (8 bits) of the pixel value gives the transparency, which indicates how much of the background is allowed to show through
• Often denoted with the Greek letter alpha: \(\alpha\)
• Varies from 0 to 255 like the other 8 bit values:
  • 0 is entirely transparent
  • 255 is entirely opaque

Breaking out the Colors

• You do not need to convert the pixel values yourself! PGL has built-in ways to extract the various colors

Image Thresholding

• As an example of reading and manipulating pixel values, lets look at how we could threshold the image to the right
• Thresholding is when you take a grayscale image and convert it to a black and white image, where a pixel is set to be white if it is above a certain threshold in brightness
• Grayscale, so each RGB component is the same Let’s threshold at a value of 30

Image Thresholding Example

from pgl import GWindow, GOval, GImage

gw =GWindow(600,400)
image = GImage("Moon.png", 0,0)
image.scale(gw.get_width()/image.get_width())
gw.add(image)

def imagetreshold(e):
    TRESHOLD = 130
    pixel = image.get_pixel_array()
    #print(pixel)
    for r in range(len(pixel)):
        for c in range(len(pixel[0])):
            value = pixel[r][c]
            red =GImage.get_red(value)
            if red< TRESHOLD:
                pixel[r][c]= GImage.create_rgb_pixel(0,0,0)
            else:
                pixel[r][c] = GImage.create_rgb_pixel(255,255,255)
    # You must create a new Gimage
    new_image = GImage(pixel)
    gw.add(new_image)
gw.add_event_listener("click", imagetreshold)
