Queues

Fred Agbo

2025-10-22

Announcements

• Welcome!
• Mini project 2 is due on next week Monday October 27

Queues Data Structures

Learning Objectives

• Describe the features of a queue and the operations on it
• Choose a queue implementation based on its performance characteristics
• Recognize applications where it is appropriate to use a queue
• Explain the difference between a queue and a priority queue
• Recognize applications where it is appropriate to use a priority queue

Overview of Queues (1 of 3)

• Queues are linear collections
• Insertions occur only at one end, called the rear
• Removals occur only at the other end, called the front
• Queues follow a first-in-first-out (FIFO) protocol

Overview of Queues (2 of 3)

• Two fundamental operations:

  • add: adds an item to the rear of the queue
    • Another term as add operation is enqueue
  • pop: removes an item from the front of the queue
    • Another term for pop operation is dequeue

Overview of Queues (3 of 3)

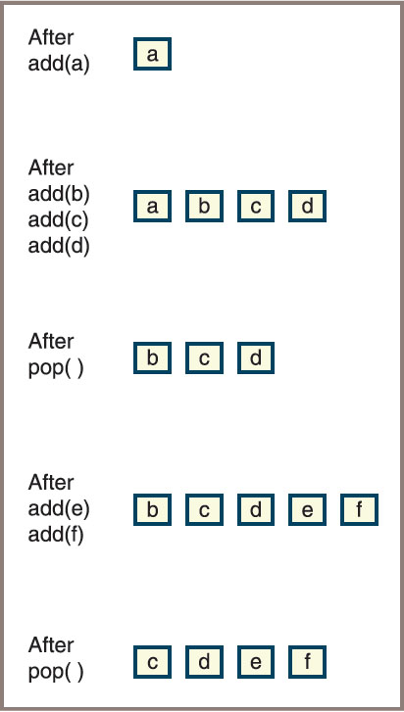

• The states a queue

• Initially, the queue is empty:
• Then an item called a is added
• Next, three more items called b, c, and d are added
• After which an item is popped, and so forth

Priority Queues

• A priority queue is a special type of queue:
  • Assigns a priority to each item.
  • Items with higher priority are removed before items with lower priority.
  • If two items have the same priority, removal follows the FIFO (first-in-first-out) order.
• Common implementations:
  • Heap-based (efficient for insert and remove)
  • Unsorted/Sorted lists (less efficient)

Queue Applications:

• Task scheduling
• Dijkstra’s shortest path algorithm
• Event-driven simulations
• CPU access — Processes are queued for access to a shared CPU
• Disk access — Processes are queued for access to a shared secondary storage device
• Printer access — Print jobs are queued for access to a shared laser printer

Emulating a Queue with a Python List

• One can use a Python list to emulate a queue:
  • Use append to add an item to the rear of the queue
  • Use pop to remove and return the item at the front of the queue
• Drawbacks:
  • All other list operations can manipulate the queue as well
• Additional operation:
  • A peek operation is useful to return the item at the front of the queue without removing it

The Queue Interface (Part 1)

Queue Method	What It Does
q.isEmpty()	Returns True if q is empty or False otherwise.
len(q)	Same as len(q). Returns the number of items in q.
str(q)	Same as str(q). Returns the string representation of q.
q.__iter__()	Same as iter(q), or for item in q. Visits each item in q, from front to rear.
q.__contains__(item)	Same as item in q. Returns True if item is in q or False otherwise.

The Queue Interface (Part 2)

Queue Method	What It Does
q1__add__(q2)	Same as q1 + q2. Returns a new queue containing the items in q1 followed by the items in q2.
q.__eq__(anyObject)	Same as q == anyObject. Returns True if q equals anyObject or False otherwise. Two queues are equal if items match.
q.clear()	Makes q become empty.
q.peek()	Returns the item at the front of q. Precondition: q must not be empty; raises a KeyError if the queue is empty.
q.add(item)	Adds item to the rear of q.
q.pop()	Removes and returns the item at the front of q. Precondition: q must not be empty; raises a KeyError if empty.

Effects of Queue Operations

Operation	State of the Queue after Operation	Value Returned	Comment
q = ()			Initially, the queue is empty.
q.add(a)	a		The queue contains the single item a.
q.add(b)	a b		a is at the front of the queue and b is at the rear.
q.add(c)	a b c		c is added at the rear.
q.isEmpty()	a b c	False	The queue is not empty.
len(q)	a b c	3	The queue contains three items.
q.peek()	a b c	a	Return the front item on the queue without removing it.
q.pop()	b c	a	Remove the front item from the queue and return it. b is now the front item.
q.pop()	c	b	Remove and return b.
q.pop()		c	Remove and return c.
q.isEmpty()		True	The queue is empty.
q.peek()		exception	Peeking at an empty queue throws an exception.
q.pop()		Exception	Trying to pop an empty queue throws an exception.
q.add(d)	d		d is the front item.

Two Applications of Queues

1. Computer Simulations

• Computer simulations are used to study behavior of real-word systems
  • Especially when it is impractical or dangerous to experiment directly
• Examples
  • Simulation that mimics traffic flow on a busy highway
  • Simulation can help managers schedule employees and monitor technology
  • Simulation programs use a simple technique to mimic variability:

Two Applications of Queues

1. Computer Simulations

• Suppose new customers are expected on average once every 4 minutes
  • Then, during each minute of simulated time, a program can generate a random number between 0 and 1
    • If the number is less than 1/4, the program adds a new customer to a checkout line; otherwise, it does not
• Queues are used to model waiting lines in simulations (e.g., customers at a bank, packets in a network).
• Events are processed in the order they arrive (FIFO).
• The queue helps manage entities waiting for service and track system performance.

Two Applications of Queues

2. Round-Robin CPU Scheduling

• Operating systems use queues to manage processes waiting for CPU time.
• Each process is added to the rear of the queue.
• The process at the front is given a time slice to execute, then moved to the rear if not finished.
• Ensures fair allocation of CPU resources among all processes.

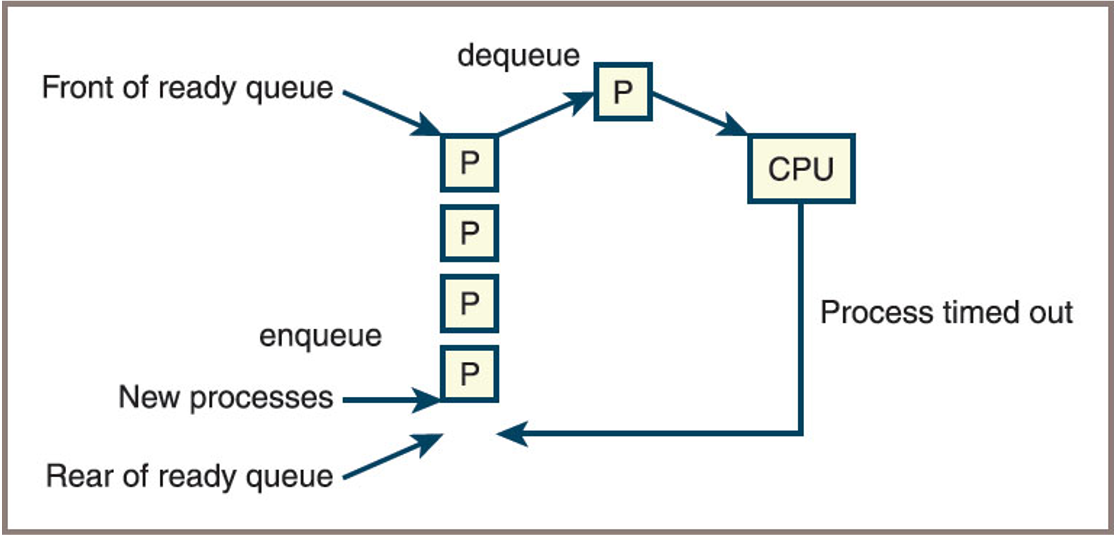

Round-Robin CPU Scheduling

• Scheduling processes for a C P U

Implementations of Queues

• The structure of a queue lends itself to either an array implementation or a linked implementation:
  • Similar to approaches used for stacks in the previous chapter
    • We will then look at the Linked implementation first then Array implementation

A Linked Implementation of Queues

• Both LinkedStack and LinkedQueue classes
  • Use a singly linked Node class to implement nodes
  • The operation pop removes the first node in the sequence in both collections
• LinkedQueue.add and LinkedStack.push differ:
  • push adds a node at the head of the sequence
  • add adds a node at the tail
• To provide fast access to both ends of a queue’s linked structure,
  • There are external pointers to both ends

A Linked Implementation of Queues

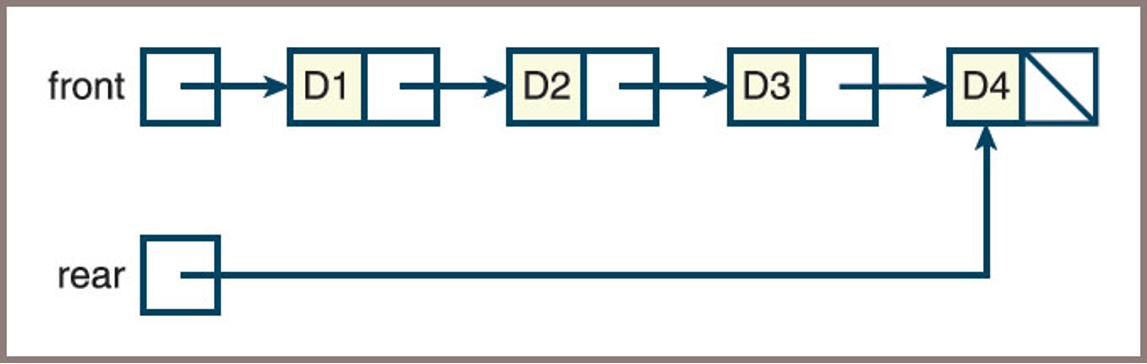

• A linked queue with four items

A Linked Implementation of Queues

• The instance variables front and rear of the LinkedQueue class are given an initial value of None
• A variable named size , already defined in the collection framework, tracks the number of elements currently in the queue
• During an add operation,
  • Create a new node
  • Set the next pointer of the last node to the new node
  • Set the variable rear to the new node

A Linked Implementation of Queues

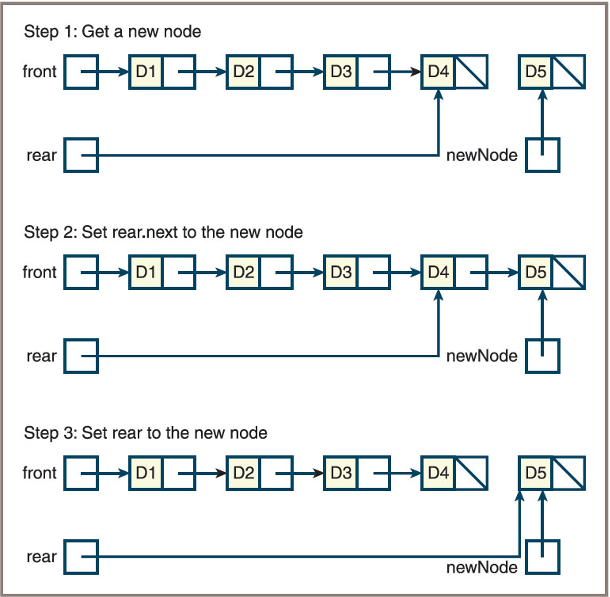

• Adding an item to the rear of a linked queue

A Linked Implementation of Queues

• Code for the add method:

def add(self, newItem):
    """Adds newItem to the rear of the queue."""
    newNode = Node(newItem, None)
    if self.isEmpty():
        self.front = newNode
    else:
        self.rear.next = newNode
    self.rear = newNode
    self.size += 1

A Linked Implementation of Queues

• If the queue becomes empty after a pop operation, the front and rear pointers must both be set to None

def pop(self):
    """Removes and returns the item at front of the queue.
    Precondition: the queue is not empty."""
    # Check precondition here
    oldItem = self.front.data
    self.front = self.front.next
    if self.front is None:
        self.rear = None
    self.size -= 1
    return oldItem

An Array Implementation

• The array implementation of a queue must access items at the logical beginning and the logical end
• Best to approach the problem in a sequence of three attempts

An Array Implementation

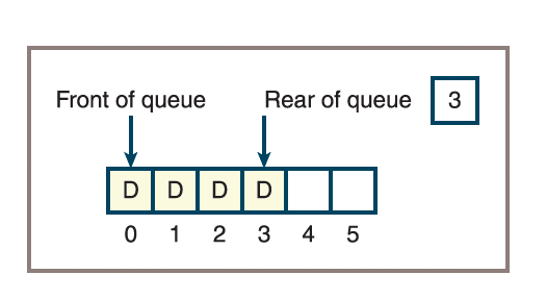

First attempt

• Fixes the front of the queue at index position 0 and maintains an index variable, called rear, that points to the last item at position n − 1

An Array Implementation

Second attempt

• You can avoid pop ’s linear behavior by not shifting items left each time the operation is applied

• The modified implementation maintains a second index, called front , that points to the item at the front of the queue The front pointer starts at 0 and advances through the array as items are popped

• Figure below shows such a queue after five add and two pop operations

An Array Implementation

Third attempt

• By using a circular array implementation, you can simultaneously achieve good running times for both add and pop

• The implementation resembles the previous one in one respect: the front and rear pointers both start at the beginning of the array

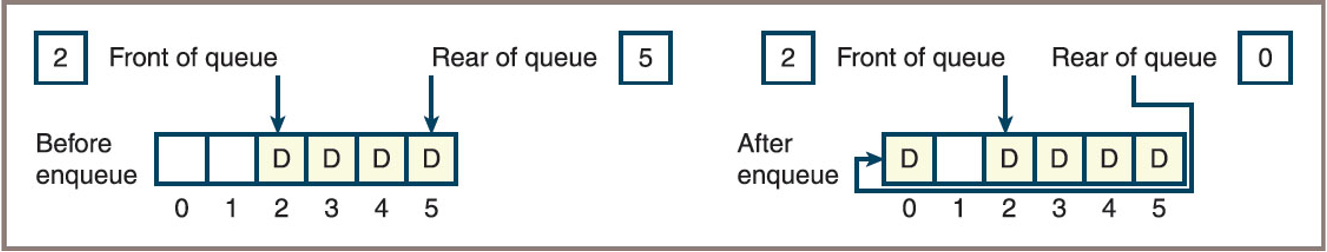

• Figure below wraps data around a circular array implementation of a queue

An Array Implementation

Third attempt

• After resizing, you would like the queue to occupy the initial segment of the new array with the front pointer set to 0
• Perform the following steps:
  • Create a new array that is twice the size of the current array
  • Iterate through the queue, using its for loop to copy items to the new array, starting at position 0 in that array
  • Reset the items variable to the new array
  • Set front to 0 and rear to the queue’s length minus 1
