GRAPH STRUCTURE

Fred Agbo

2025-11-10

Announcements

  • PS5 is due today.
  • Grading of PS4 is ongoing
  • No class this Wednesday November 12
    • Prof. Agbo is away for a conference
  • Mini Project #3 to be posted today and due on Monday November 24th
    • Use class time on Wednesday to solve the mini-project
    • Submission due date is long but other assignments will be givien inbetween

Graphs: Learning Objectives

  • Describe the features of a graph
  • Describe various types of graph traversals
  • Recognize applications where it is appropriate to use a graph
  • Choose an appropriate implementation of a graph, based on its performance characteristics
  • Develop algorithms for processing graphs

Why Use Graphs?

  • Model relationships between entities (e.g., social networks, web pages)
    • A roadmap
    • A map of airline routes
    • A layout of an adventure game world
  • Represent networks (e.g., transportation, communication, utilities)
  • Solve problems involving connectivity, paths, and cycles
  • Analyze dependencies (e.g., scheduling, project management)
  • Efficiently store and process complex data structures

Why Use Graphs?

  • Primary Feature of Graphs
    • Consist of a set of objects connected by links
    • Allow the user to navigate from one object to another
  • The graph is the most general category of collection:
    • Encompasses the linear, hierarchical, and unordered collections as special cases

More Feature of Graphs

  • Graphs are data structures that consist of:
    • Vertices (nodes): Represent entities.
    • Edges (links): Represent relationships or connections between entities.
  • Can be directed or undirected.
  • Can be weighted or unweighted.
  • Allow modeling of complex relationships and interactions.

Graph Terminology (1 of 12)

  • A graph is a set V of vertices and a set E of edges:
  • Each edge in E connects two of the vertices in V
  • Node
    • Used as a synonym for vertex
    • Vertices and edges can be labeled or unlabeled:
    • When edges are labeled with numbers, the numbers can be viewed as weights (known as a weighted graph)

Graph Terminology (2 of 12)

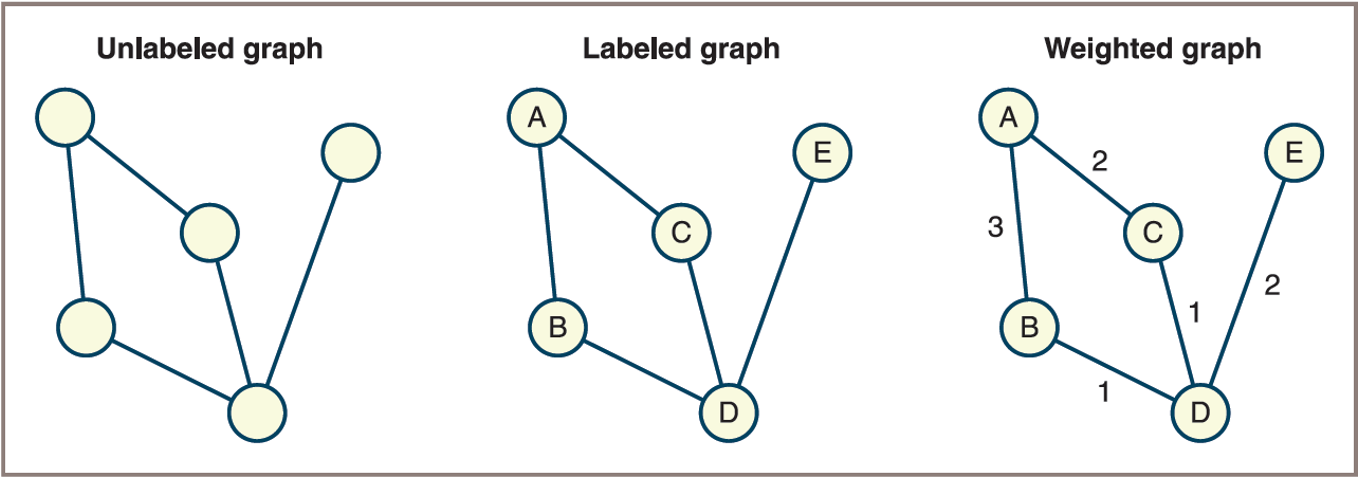

  • Unlabeled, labeled, and weighted graphs

Graph Terminology (3 of 12)

  • One vertex is v to another if there is an edge connecting the two vertices:
    • These two vertices are also called neighbors
  • A path is a sequence of edges that allows one vertex to be reached from another vertex in a graph
  • A vertex is reachable from another vertex if there is a path between the two:
    • Length of a path is the number of edges on the path
  • A graph is connected if there is a path from each vertex to every other vertex
  • A graph is complete if there is an edge from each vertex to every other vertex

Graph Terminology (4 of 12)

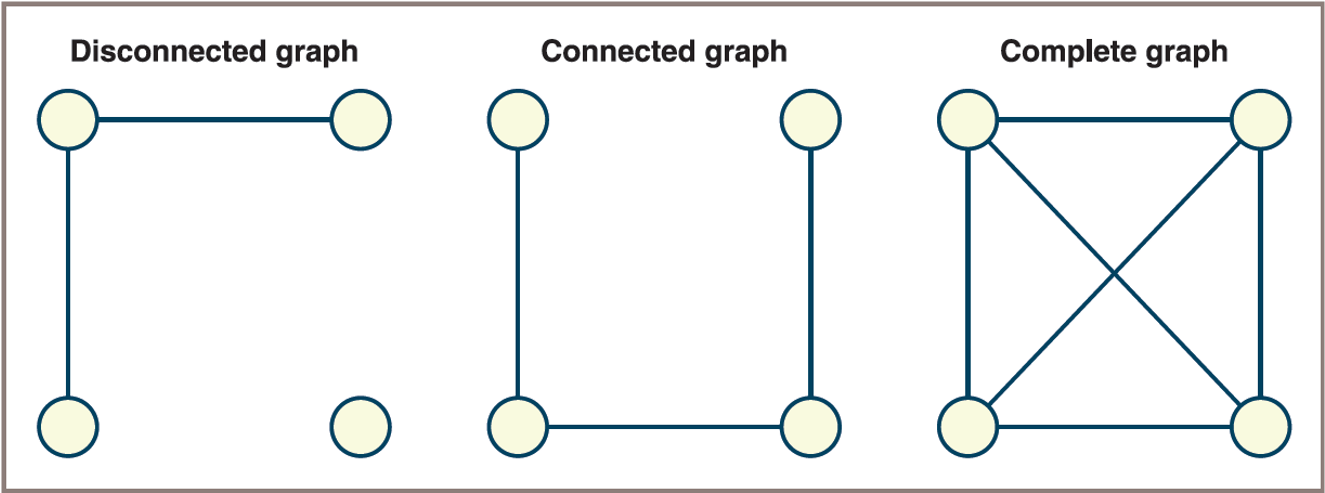

  • Disconnected, connected but not complete, and complete graphs

Graph Terminology (5 of 12)

  • The degree of a vertex is equal to the number of edges connected to it
  • Vertices with degree 0 are called isolated vertices
  • A subgraph of a given graph consists of a subset of that graph’s vertices and the edges connecting those vertices
  • Subgraphs can be used to analyze or focus on specific parts of a larger graph
  • A spanning subgraph contains all the vertices of the original graph and a subset of its edges
  • A connected component is a subgraph consisting of the set of vertices that are reachable from a given vertex

Graph Terminology (6 of 12)

  • A simple path is a path that does not pass through the same vertex more than once
  • A cycle is a path that starts and ends at the same vertex, with no repeated edges or vertices (except the starting/ending vertex)
  • An acyclic graph is a graph that contains no cycles
  • A tree is a connected acyclic graph

Graph Terminology (7 of 12)

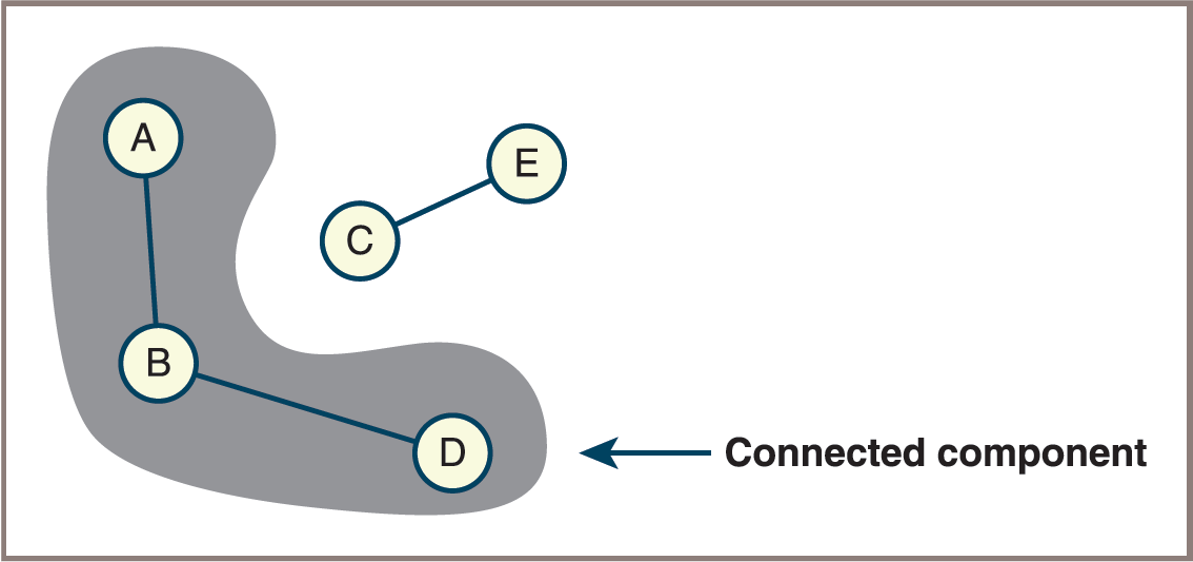

  • A connected component of a graph

Graph Terminology (8 of 12)

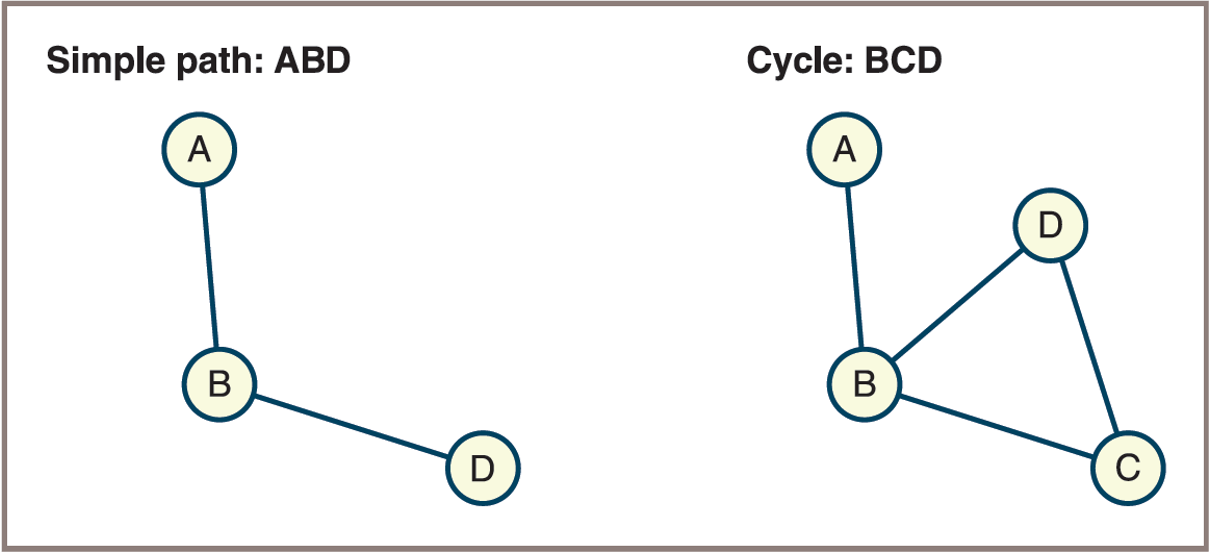

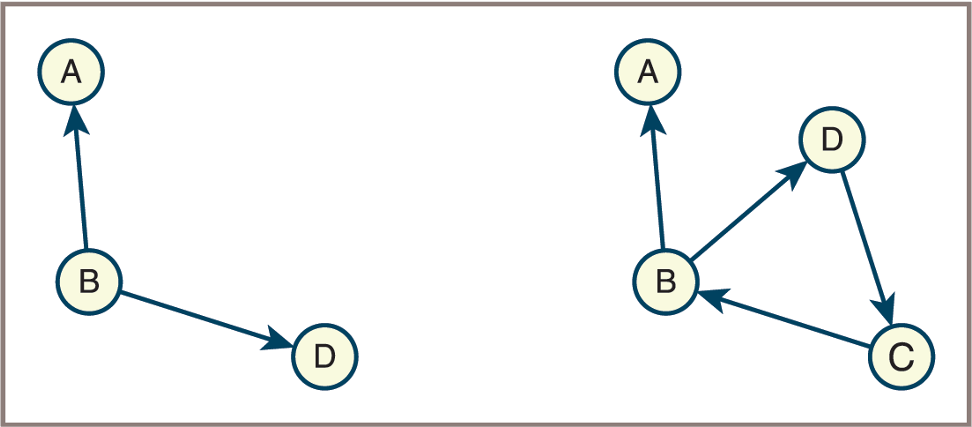

  • A simple path and a cycle

Graph Terminology (9 of 12)

  • Directed Graph (Diagraph): Edges have a direction, going from one vertex to another (such as one-way streets).
    • Each edge is an ordered pair (u, v).
    • Useful for modeling relationships where direction matters (e.g., Twitter followers, web links).
  • Undirected Graph: Edges do not have direction; they simply connect two vertices (such as two-way streets).
    • Each edge is an unordered pair {u, v}.
    • Used when relationships are mutual (e.g., Facebook friends, road networks).

Graph Terminology (8 of 12)

  • A simple path and a cycle

Graph Terminology (9 of 12)

  • Each edge in a digraph is called a directed edge
    • It has a source vertex and a destination vertex
  • When there is only one directed edge connecting two vertices, the vertices are in the relation of a predecessor (the source vertex) and a successor (the destination vertex):
    • The relation of adjacency between them is asymmetric
  • The edges emanating from a given source vertex are called its incident edges

Graph Terminology (10 of 12)

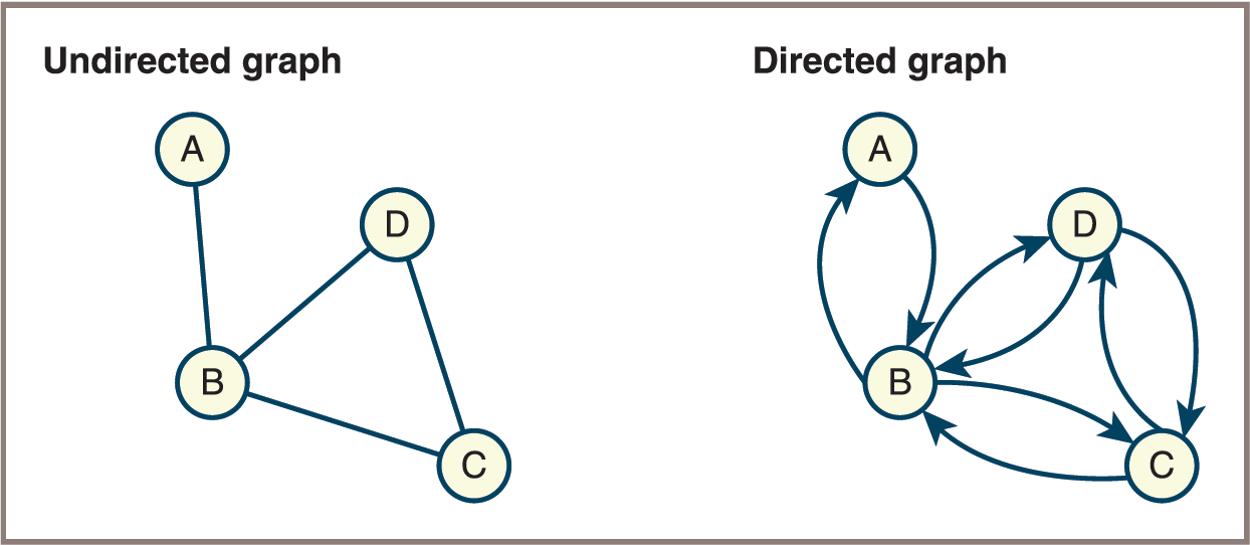

  • Converting an undirected graph to a directed graph

Graph Terminology (11 of 12)

  • Directed Acyclic Graph (DAG):
    • A directed graph with no cycles.
    • Used to model processes with dependencies (e.g., scheduling tasks, version control, data processing pipelines).
    • In a DAG, it is impossible to start at a vertex and follow a sequence of directed edges that eventually loops back to the starting vertex.
    • Many algorithms (such as topological sorting) are designed specifically for DAGs.
  • Dense Graph:
    • Has nearly the maximum possible number of edges; most vertices are interconnected.
  • Sparse Graph:
    • Has far fewer edges than possible; most vertices are not directly connected.

Graph Terminology (12 of 12)

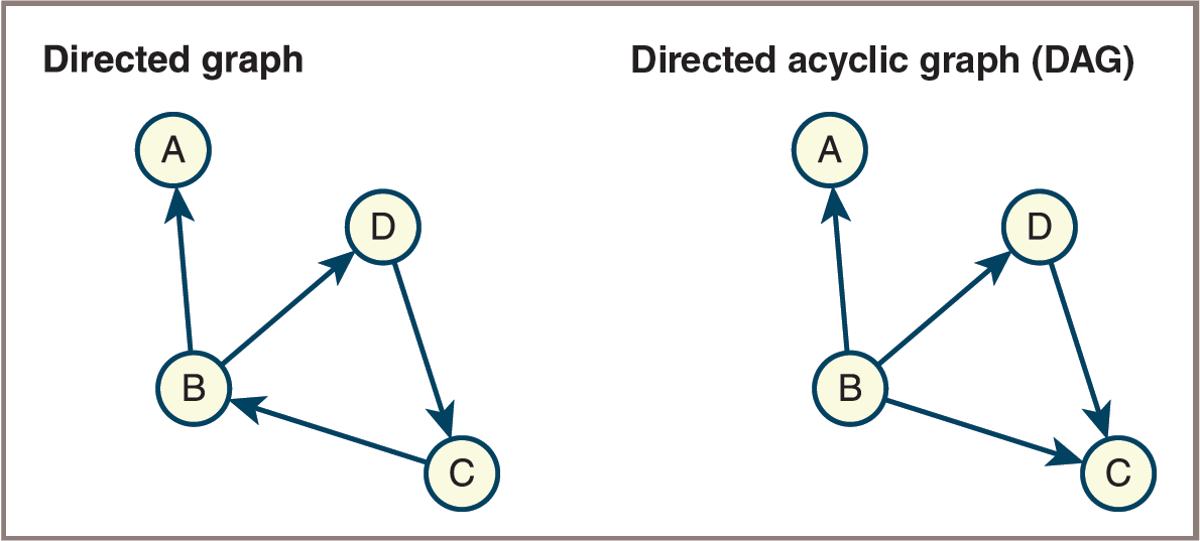

  • A directed graph and a directed acyclic graph (DAG)

Representations of Graphs

  • To represent graphs, you need a convenient way to store the vertices and the edges that connect them
  • Two commonly used representations of graphs are the adjacency matrix and adjacency list
  • Adjacency Matrix:
    • A 2D array where each cell (i, j) indicates if there is an edge between vertex i and vertex j.
    • Efficient for dense graphs.
    • Space complexity: O(n²), where n is the number of vertices.
  • Adjacency List:
    • Each vertex has a list of adjacent vertices.
    • Efficient for sparse graphs.
    • Space complexity: O(n + e), where e is the number of edges.

Adjacency Matrix

  • Assume that a graph has N vertices labeled 0, 1, …, N − 1, and then the following applies:

  • The adjacency matrix for the graph is a grid G with N rows and N columns

  • The cell G[i][j] contains 1 if there is an edge from vertex i to vertex j in the graph; otherwise, there is no edge, and that cell contains 0

Adjacency Matrix

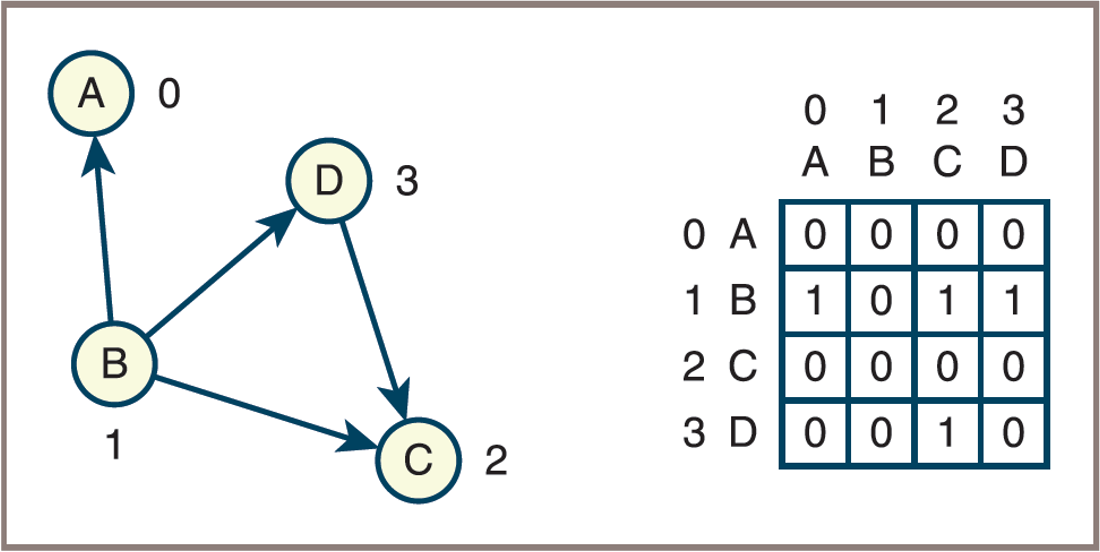

  • A directed graph and its adjacency matrix

Adjacency Matrix

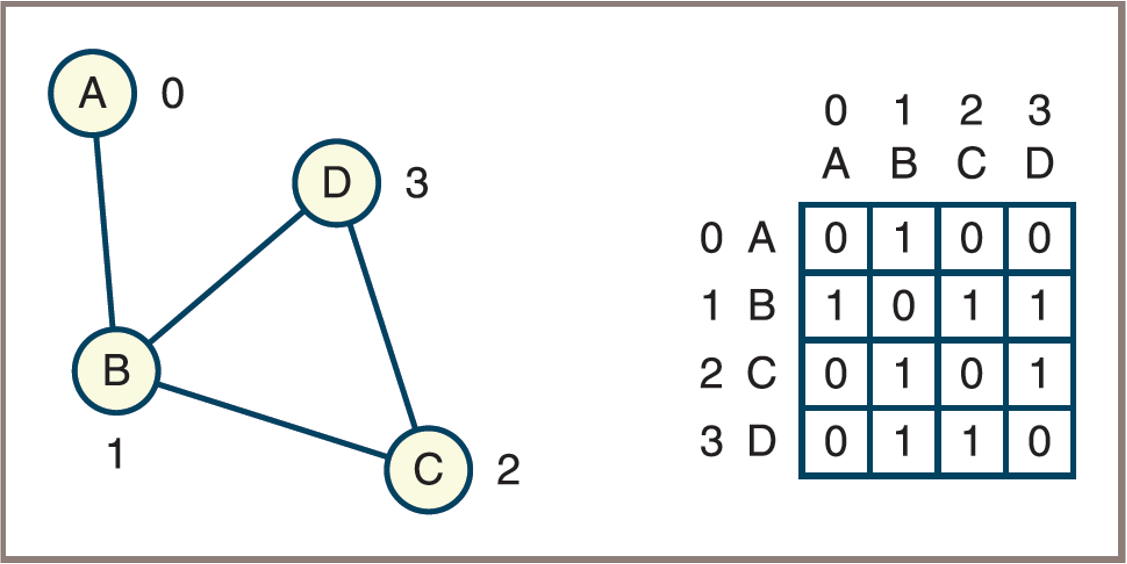

  • An undirected graph and its adjacency matrix

Adjacency List

  • Assume that a graph has N vertices labeled 0, 1, …, N − 1, and then the following applies:
    • The adjacency list for the graph is an array of N linked lists
    • The ith linked list contains a node for vertex j if and only if there is an edge from vertex i to vertex j

Adjacency List

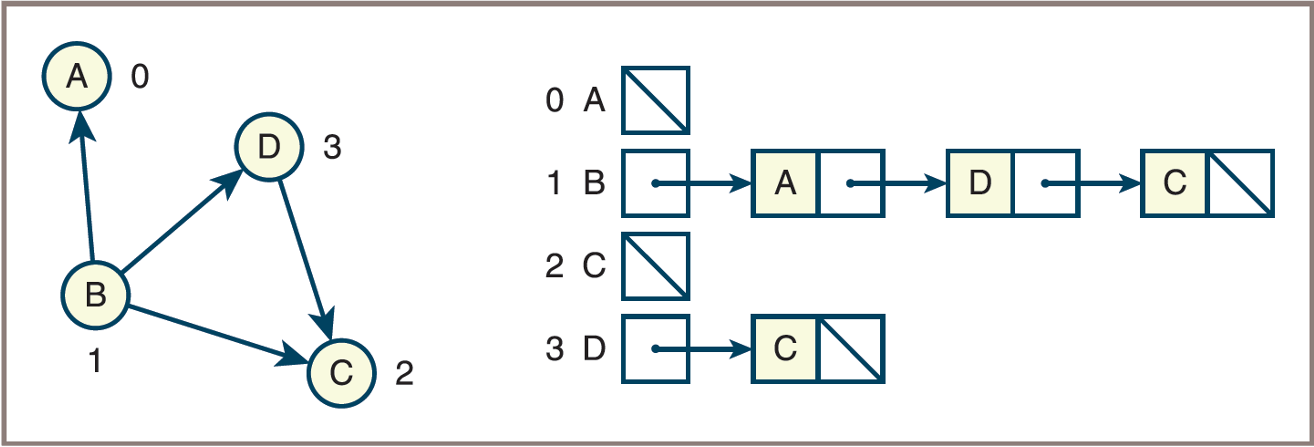

  • A directed graph and its adjacency list

Adjacency List

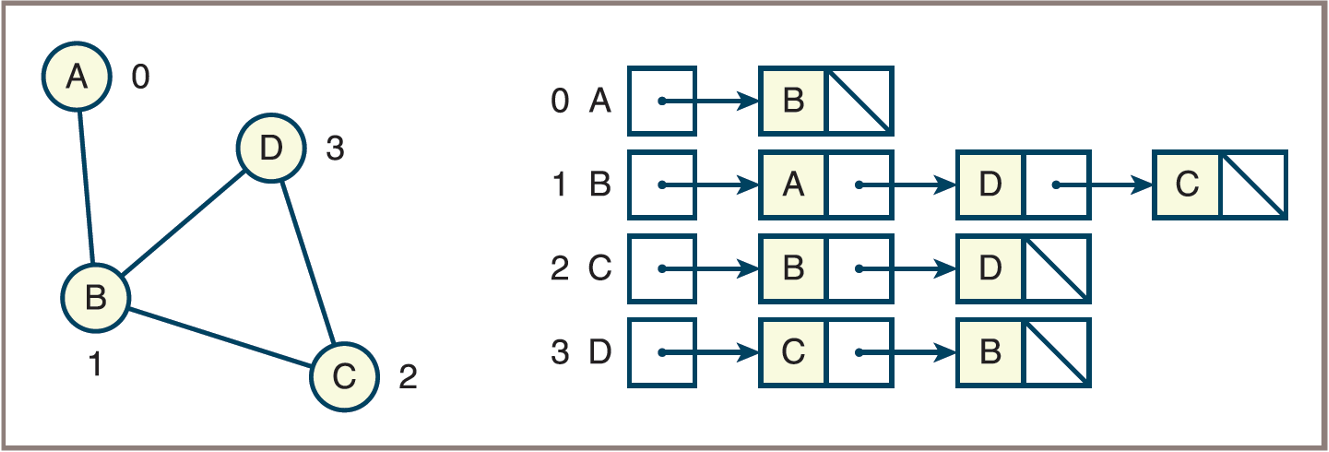

  • An undirected graph and its adjacency list

Adjacency List

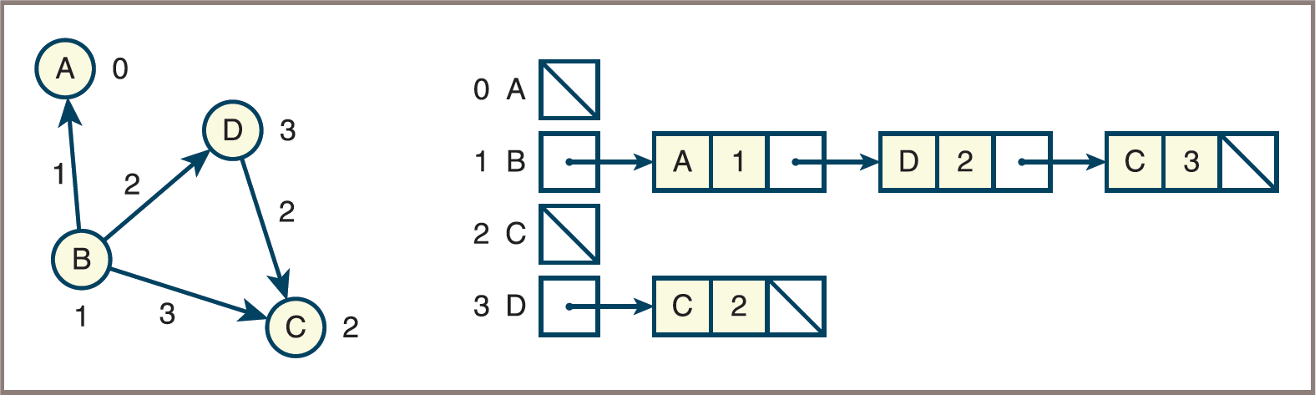

  • A weighted, directed graph and its adjacency list

Analysis of the Two Representations

  • Regarding running time,
    • The behavior of two commonly used graph operations illustrates the difference in computational efficiency between the adjacency matrix and the adjacency list
  • These operations are the following:
    • Determine whether or not there is an edge between two given vertices
    • Find all the vertices adjacent to a given vertex
  • The adjacency matrix supports the first operation in constant time:
    • It requires just an index operation into a two-dimensional array
  • The linked adjacency list requires an index into an array of linked lists and then a search of a linked list for a target vertex

Analysis of the Two Representations

  • The adjacency list tends to support finding all the vertices adjacent to a given vertex more efficiently than the adjacency matrix
  • The linked adjacency list and the array-based adjacency list exhibit performance trade-offs for insertions of edges into the lists:
    • The array-based insertion takes linear time, whereas the linked-based insertion requires constant time
  • Regarding memory
    • Adjacency matrix always requires \(N^2\) cells, no matter how many edges connect the vertices
    • Adjacency list requires an array of N pointers and a number of nodes equal to twice the number of edges in the case of an undirected graph

Further Run-Time Considerations

  • Another commonly performed operation in graph algorithms is to iterate across all the neighbors of a given vertex
  • Let N = number of vertices and M = number of edges, then the following applies:
    • Using an adjacency matrix to iterate across all neighbors, you must traverse a row in a time that is O(N): To repeat this for all rows is \(O(N^2)\)
  • Using an adjacency list, the time to traverse across all neighbors depends on the number of neighbors:
    • On the average, this time is O(M/N)
    • To repeat this for all vertices is O(max(M, N)), which for a dense graph is \(O(N^2)\) and for a sparse graph is O(N)
  • Thus, adjacency lists can provide a run-time advantage when working with sparse graphs
